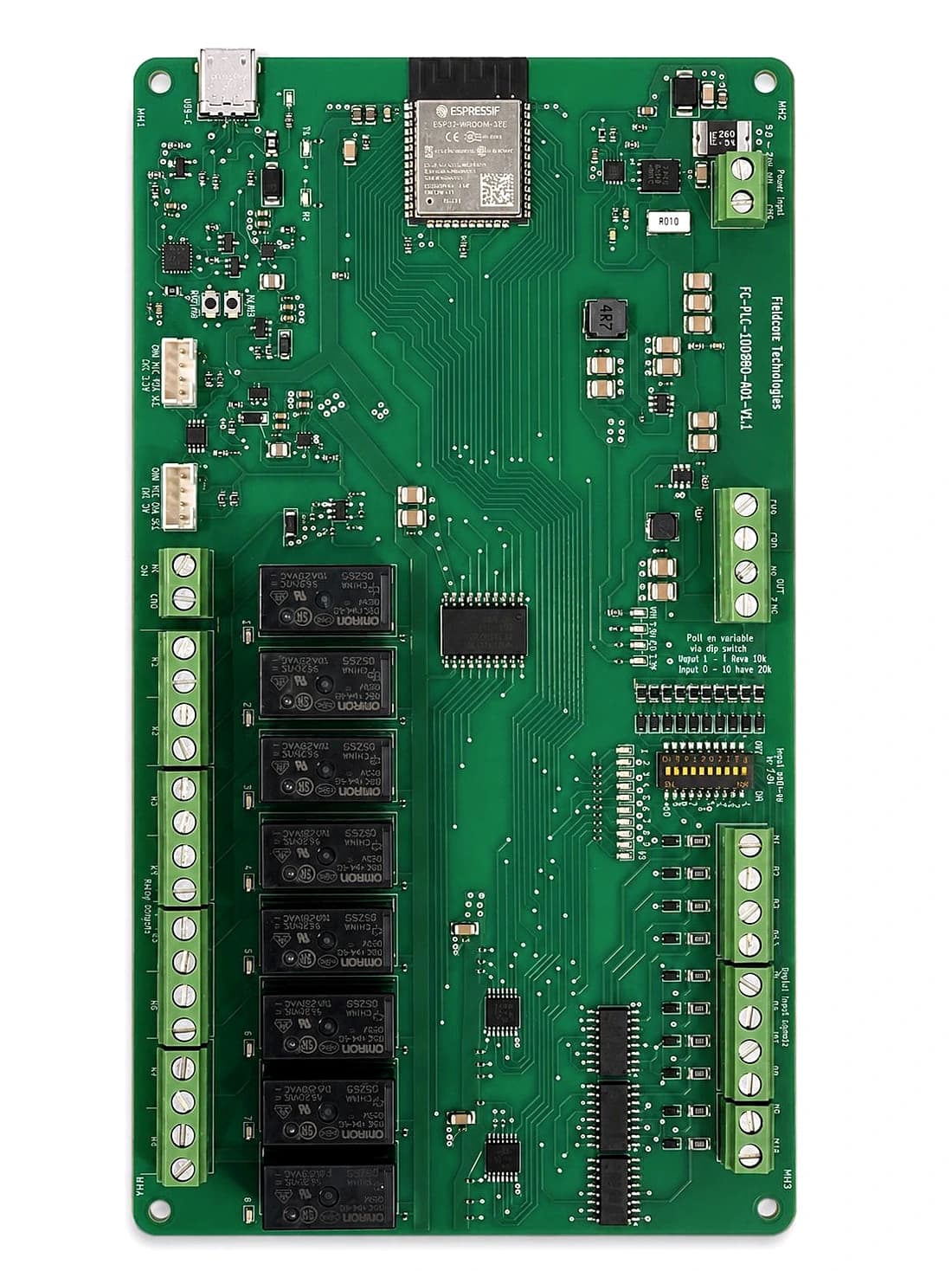

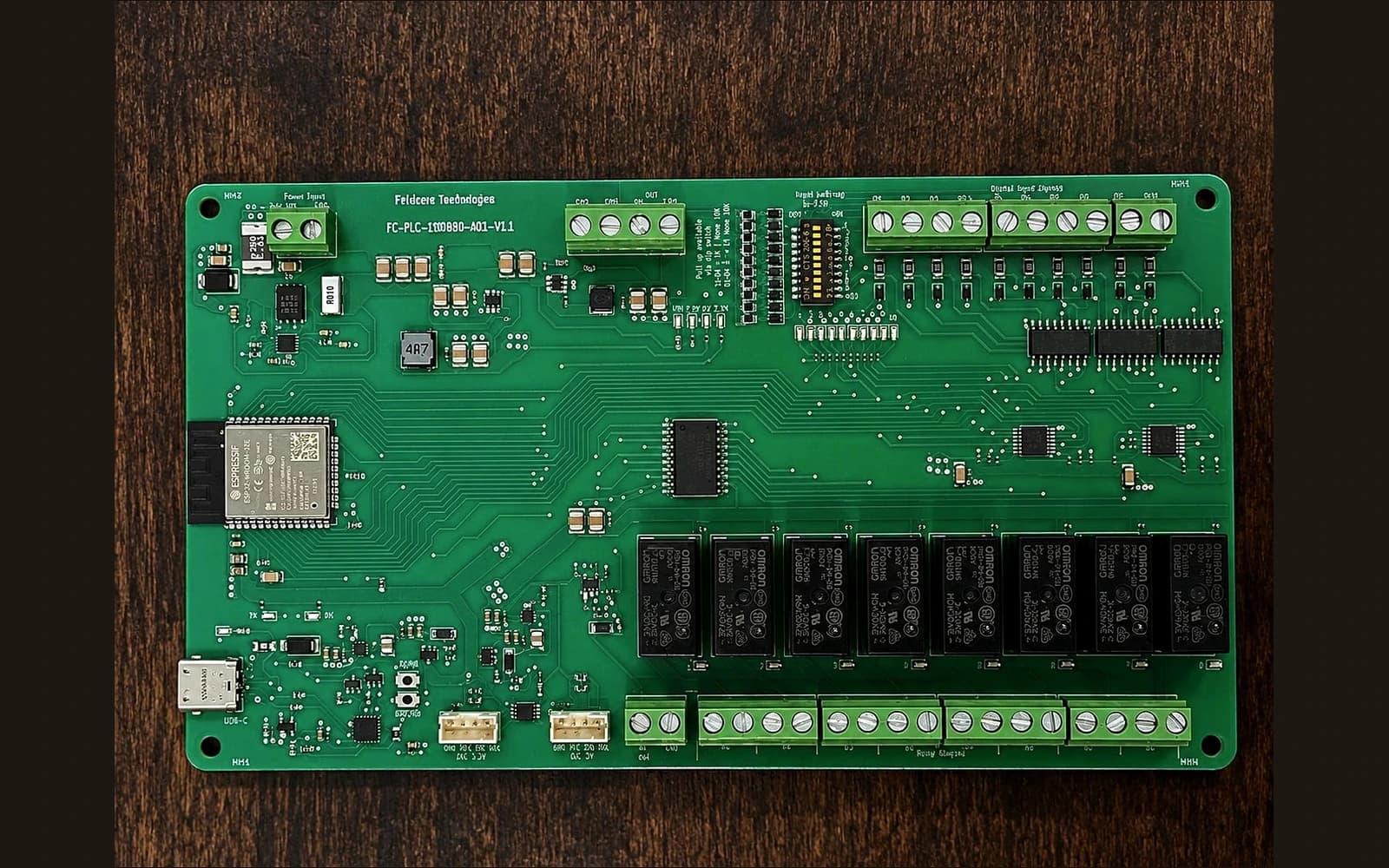

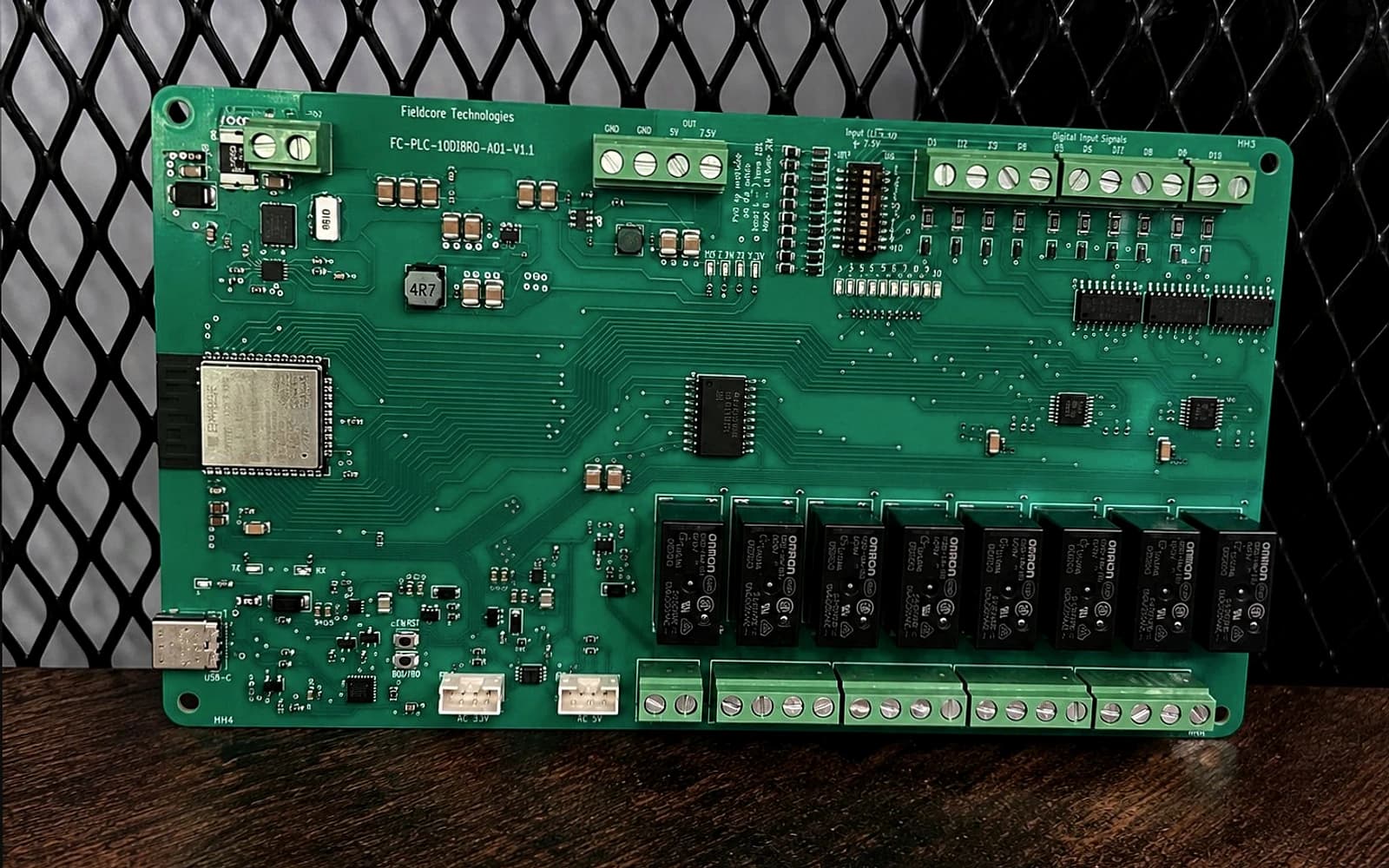

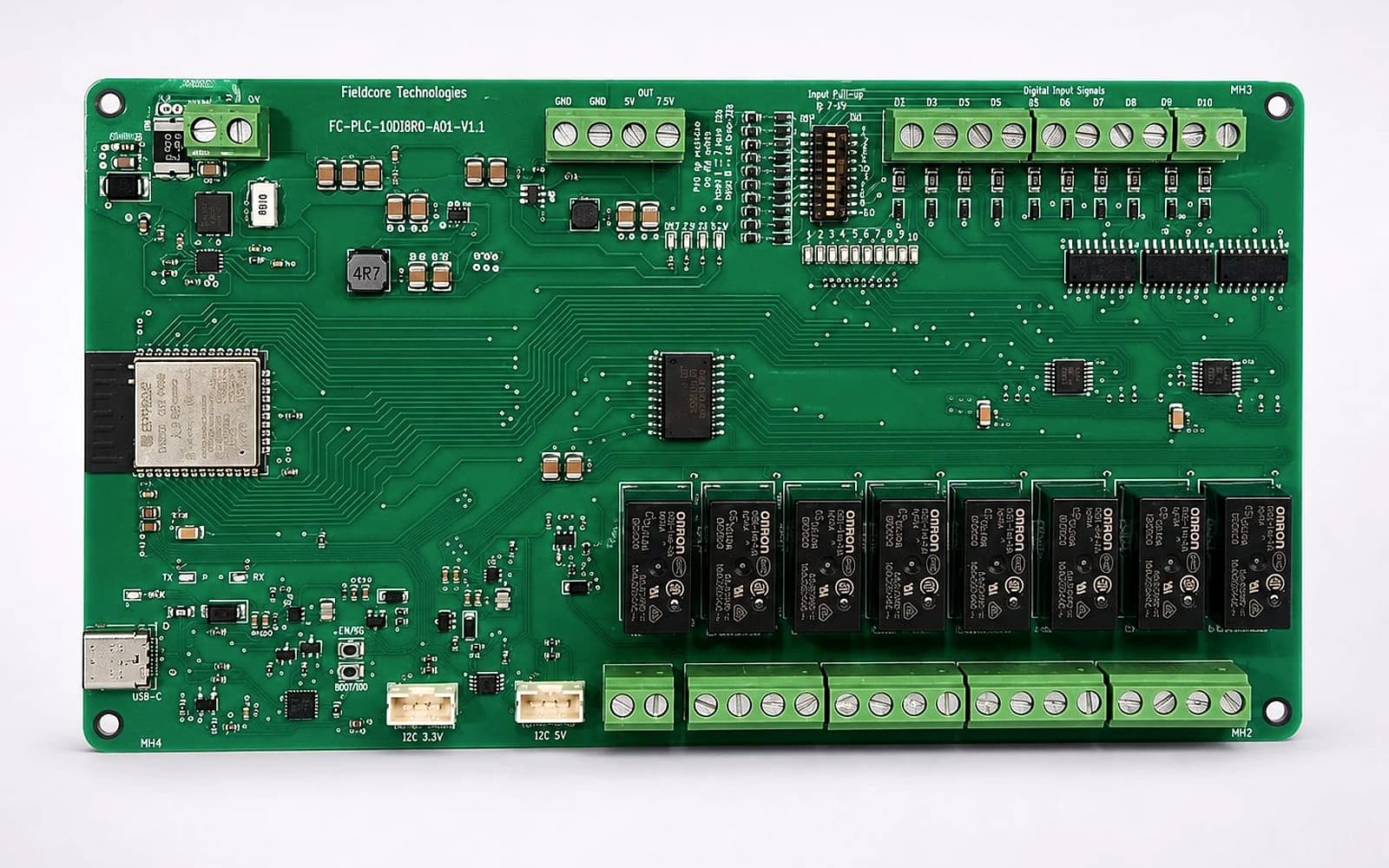

PLC V1.1
Updated PLC V1 platform with USB-C programming, level-shifted I2C accessory headers, protected power rails, opto inputs, relays, and AO1.
SKU: FC-PLC-10DI8RO-AO1-V1.1
Contact Sales
Save this item for a future quote request without starting a sales inquiry yet.
Overview
PLC V1.1 keeps the proven PLC V1 core I/O behavior while adding board-level polish around programming, power, and expansion. It uses an ESP32-WROOM-32E-H4, CP2102N USB-to-UART, PCA9306 level shifting for the 5V I2C accessory header, 10 opto-isolated digital inputs, 8 onboard relays, and AO1 from ESP32 DAC1 on GPIO26.
Highlights
- Same core PLC V1 I/O behavior with V1.1 board-level refinements
- Two I2C accessory headers: one 3.3V header and one 5V header
- PCA9306 level shifting for the 5V I2C accessory header
- CP2102N USB-to-UART for programming and serial monitor
- 10 opto-isolated digital inputs, 8 onboard relays, and AO1 on GPIO26
Specs
Part Number
FC-PLC-10DI8RO-AO1-V1.1
MCU
ESP32-WROOM-32E-H4
Input Voltage
9-30 V DC
Digital Inputs
10 x opto-isolated, IN1-IN10
Relay Outputs
8 x onboard relays, RLY1-RLY8
Analog Output
AO1 from ESP32 DAC1 on GPIO26
I2C Bus
SDA GPIO21 / SCL GPIO22
I2C Headers
One 3.3V header and one 5V level-shifted header
USB / Serial
USB-C with CP2102N USB-to-UART
I2C Level Shift
PCA9306
Protection
LTC4368 input protection
Power Rails
AP63205, LMR50410, and MIC23150 rails
Relay Driver
ULN2803
