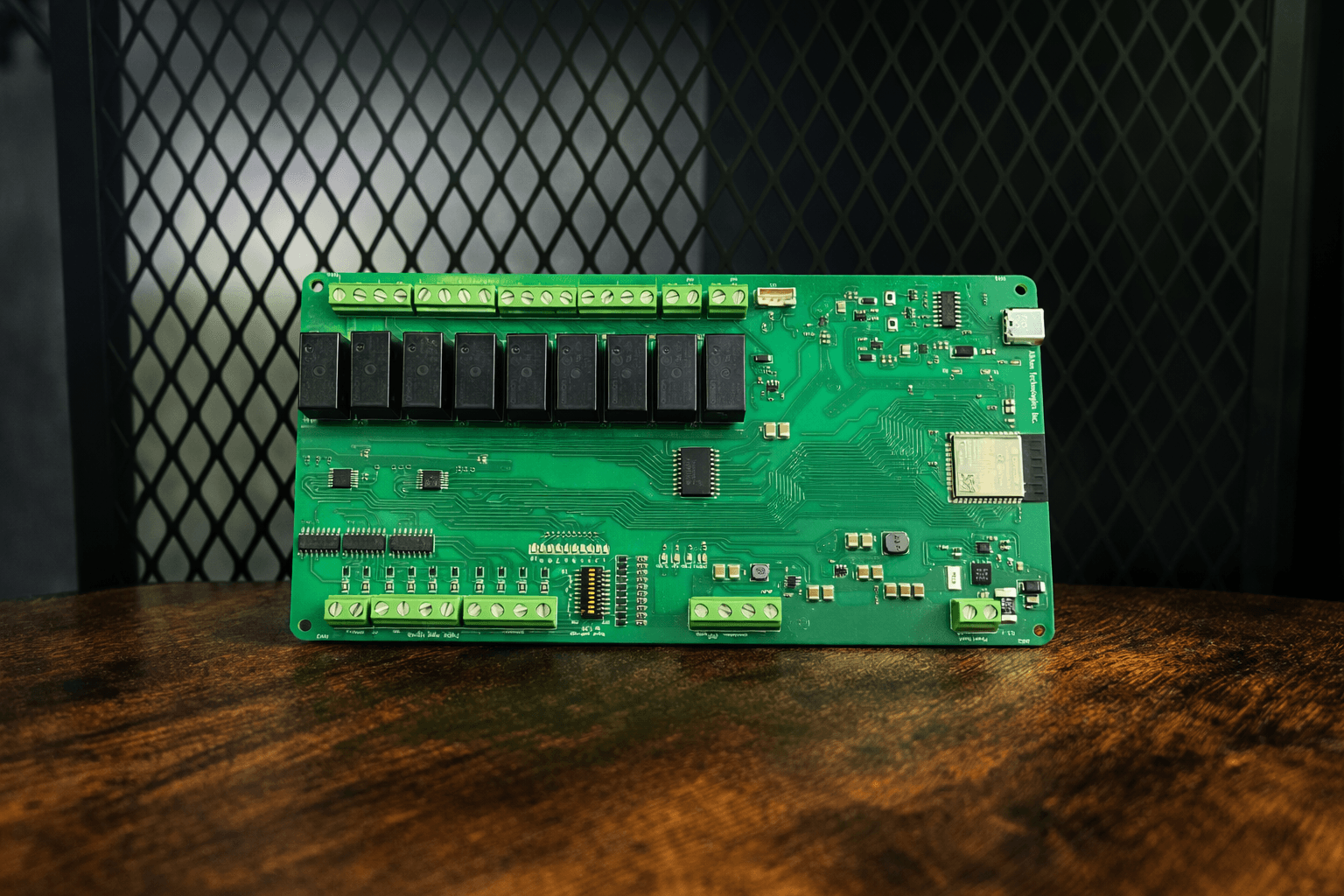

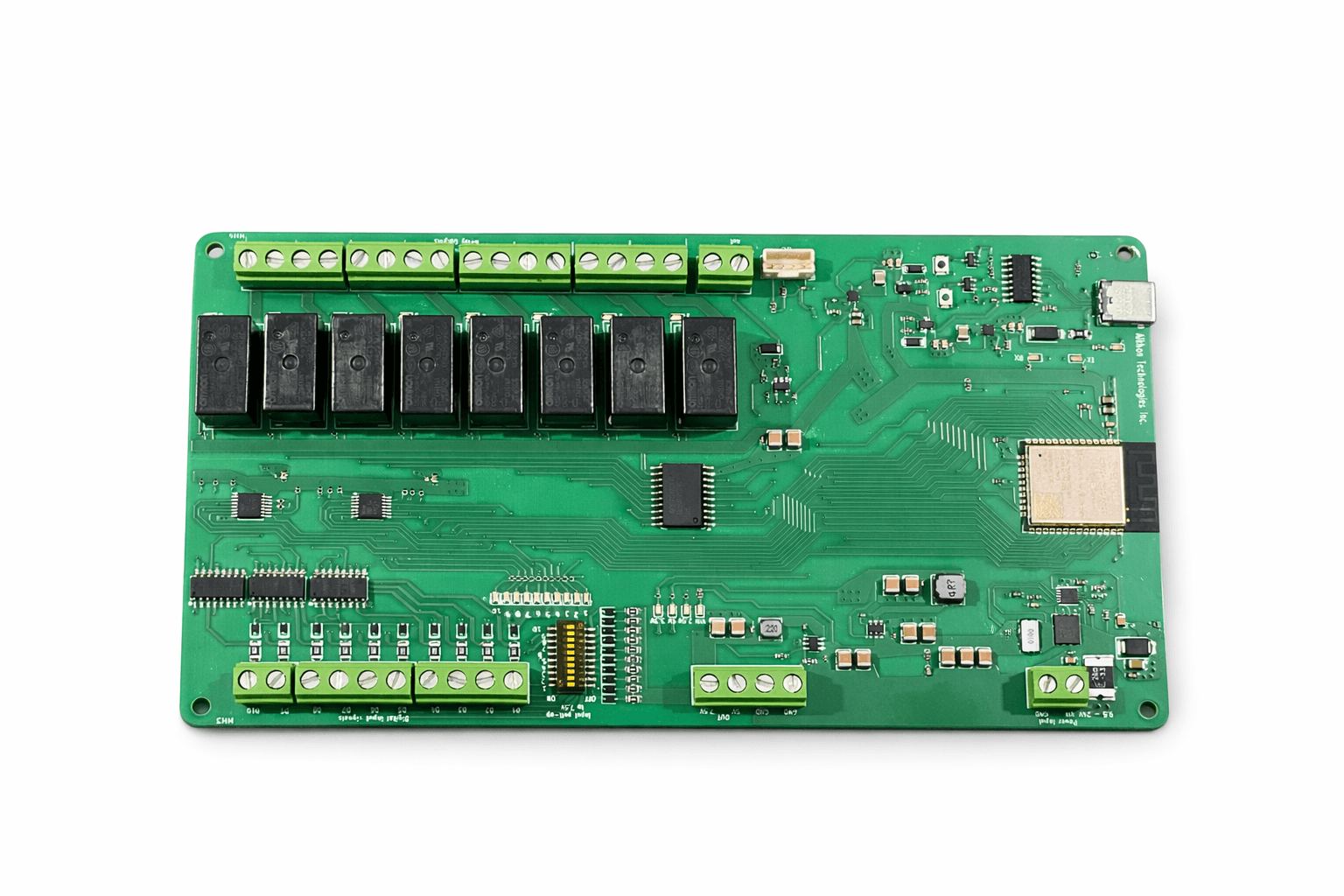

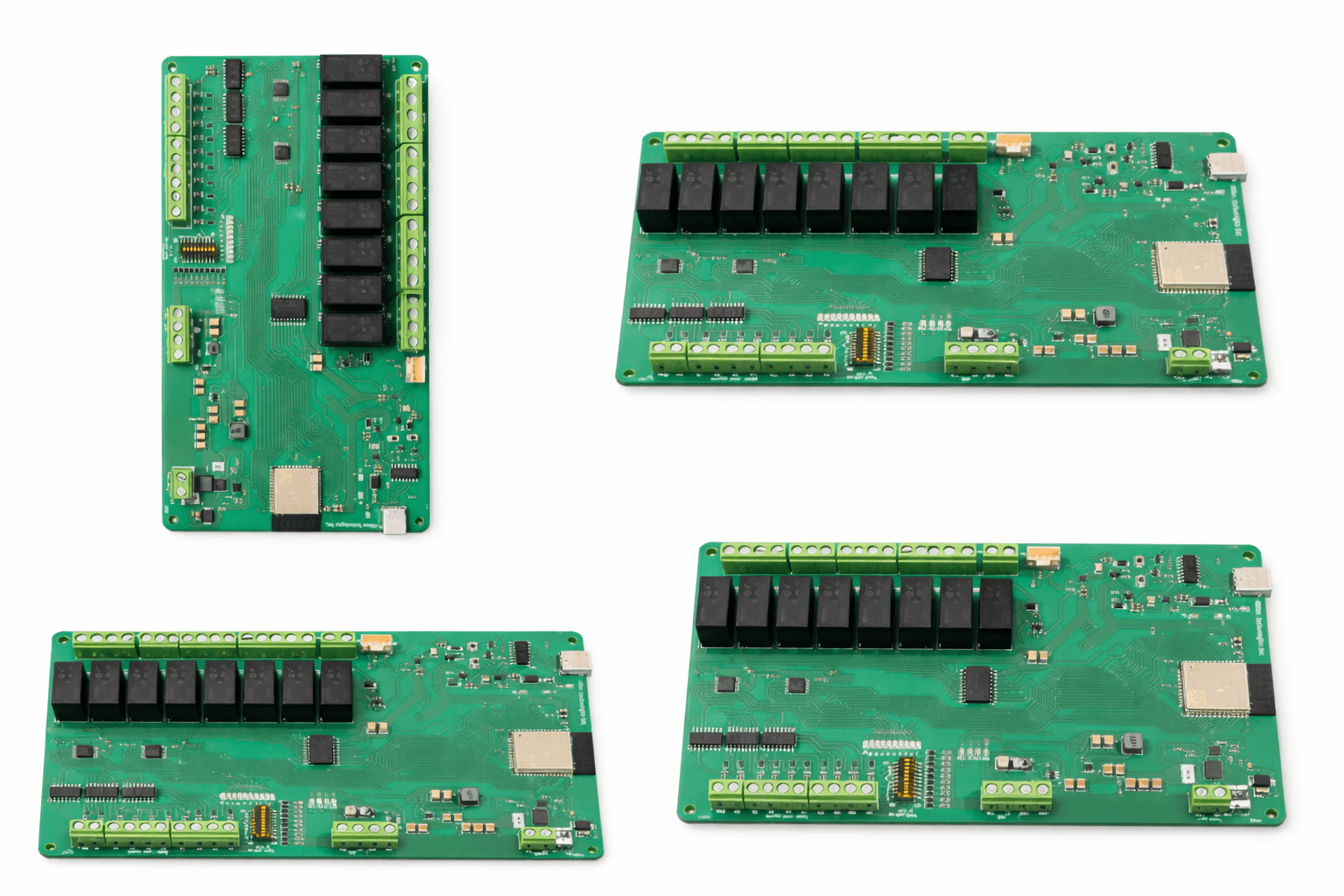

PLC V1
Rugged 9–30V industrial controller with opto-isolated inputs and relay outputs for field automation and vehicle upfitting.
SKU: FC-PLC-10DI8RO-AO1-V1
Contact Sales
Save this item for a future quote request without starting a sales inquiry yet.
Overview
PLC V1 is a rugged controller built for real-world electrical noise, transients, and mobile equipment environments. It supports opto-isolated digital inputs, high-reliability relay outputs, and a 0–5V analog output for proportional control and signaling.
Highlights
- 9–30V input with UV/OV + reverse polarity protection (LTC4368 front end)
- 10× opto-isolated digital inputs (3.3–24V field compatible)
- 8× relay outputs with ULN2803 driver and status LEDs
- 1× 0–5V analog output (buffered, DAC-based)
- I²C ready for expansion modules and sensors
Specs
Part Number
FC-PLC-10DI8RO-AO1-V1
Input Voltage
9–30 V DC
Digital Inputs
10 × opto-isolated (3.3–24V field range)
Relay Outputs
8 × 5V relay outputs (with indicators)
Analog Output
1 × 0–5V (buffered, protected)
Protection
UV/OV, reverse polarity, electronic breaker + TVS
MCU
ESP32-WROOM-32E (dual-core 240MHz, 3.3V logic)
Interfaces
I²C, UART (debug/programming)
Form Factor
Approx. 180 × 100 mm (prototype)
Ordering
Contact Sales for quotes and lead times
Request pricing or compatibility help
When you contact us, include the part number, expected quantity, application, and any environment or wiring constraints so the team can respond faster.
- Reference this product by name or SKU.
- Share any mating parts or related accessories you need.
- Mention timing, prototype stage, or production quantity if relevant.
